Provisioning and HA

All Dashboard components are designed to have some level of redundancy and resiliency.

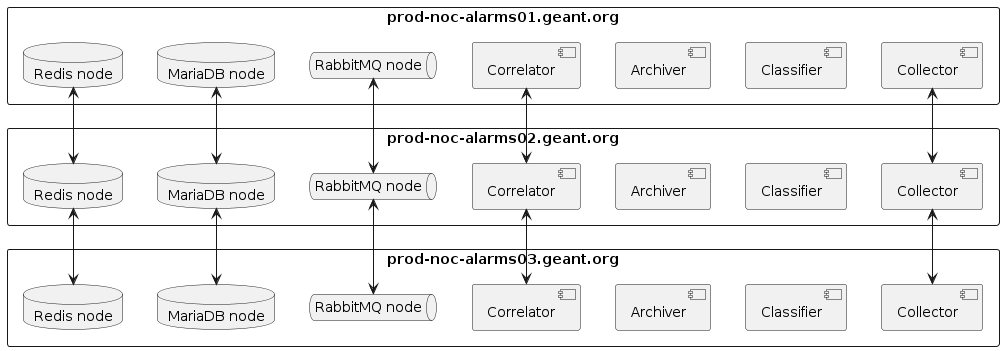

Overall Provisioning Overview

rectangle prod-noc-alarms01.geant.org { component "Collector" as COL1 component "Classifier" as CLA1 component "Archiver" as ARC1 component "Correlator" as COR1 queue "RabbitMQ node" as RMQ1 database "MariaDB node" as SQL1 database "Redis node" as Redis1 } rectangle prod-noc-alarms02.geant.org { component "Collector" as COL2 component "Classifier" as CLA2 component "Archiver" as ARC2 component "Correlator" as COR2 queue "RabbitMQ node" as RMQ2 database "MariaDB node" as SQL2 database "Redis node" as Redis2 } rectangle prod-noc-alarms03.geant.org { component "Collector" as COL3 component "Classifier" as CLA3 component "Archiver" as ARC3 component "Correlator" as COR3 queue "RabbitMQ node" as RMQ3 database "MariaDB node" as SQL3 database "Redis node" as Redis3 } COL1 <--> COL2 COL2 <--> COL3 COR1 <--> COR2 COR2 <--> COR3 RMQ1 <--> RMQ2 RMQ2 <--> RMQ3 SQL1 <--> SQL2 SQL2 <--> SQL3 Redis1 <--> Redis2 Redis2 <--> Redis3

Data Processing Pipeline

The system is composed of several processes that communicate with each other via a RabbitMQ queue broker.

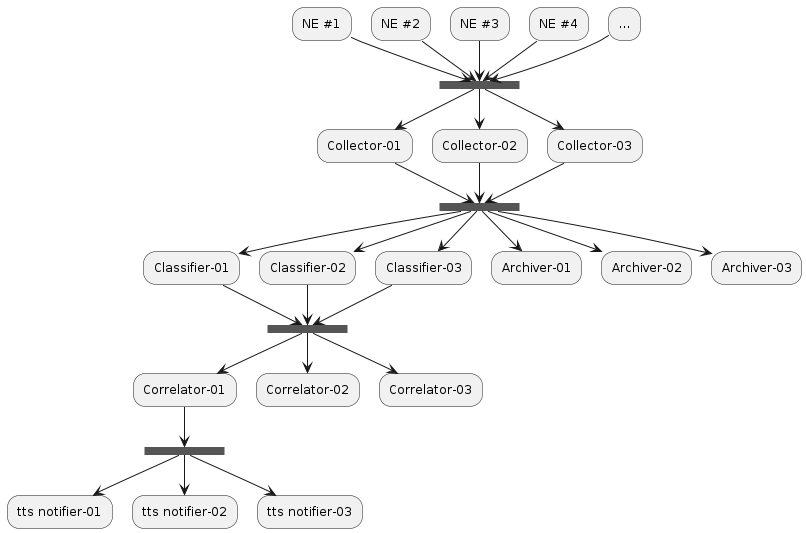

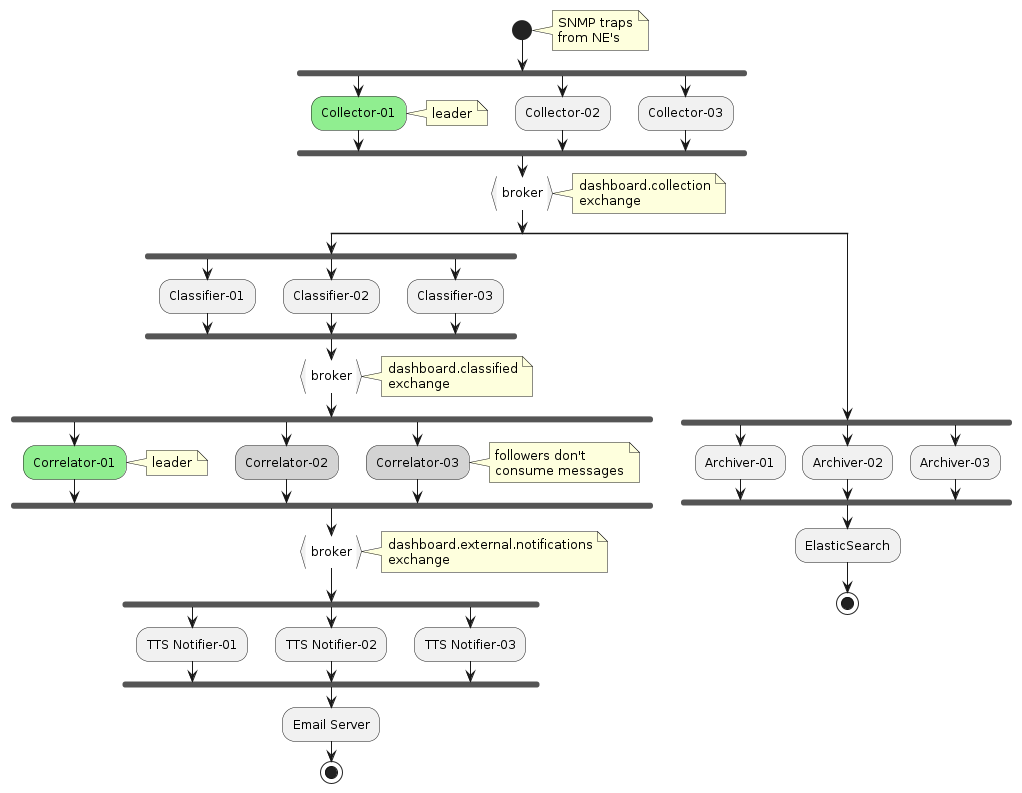

The basic RabbitMQ pipeline is shown below:

TODO: throw out the 2nd diagram, kept for now as an example. 1st diagram is the newer syntax

start note right SNMP traps from NE's end note fork #lightgreen:Collector-01; note right: leader fork again :Collector-02; fork again :Collector-03; end fork :broker} note right dashboard.collection exchange end note split fork :Classifier-01; fork again :Classifier-02; fork again :Classifier-03; end fork :broker} note right dashboard.classified exchange end note fork #lightgreen:Correlator-01; note right: leader fork again #lightgrey:Correlator-02; fork again #lightgrey:Correlator-03; note right followers don't consume messages end note end fork :broker} note right dashboard.external.notifications exchange end note fork :TTS Notifier-01; fork again :TTS Notifier-02; fork again :TTS Notifier-03; end fork :Email Server; stop split again fork :Archiver-01; fork again :Archiver-02; fork again :Archiver-03; end fork :ElasticSearch; stop end split

"NE #1" --> ===SNMP=== "NE #2" --> ===SNMP=== "NE #3" --> ===SNMP=== "NE #4" --> ===SNMP=== "..." --> ===SNMP=== ===SNMP=== --> "Collector-01" ===SNMP=== --> "Collector-02" ===SNMP=== --> "Collector-03" "Collector-01" --> ===TRAPS=== "Collector-02" --> ===TRAPS=== "Collector-03" --> ===TRAPS=== ===TRAPS=== --> "Classifier-01" ===TRAPS=== --> "Classifier-02" ===TRAPS=== --> "Classifier-03" ===TRAPS=== --> "Archiver-01" ===TRAPS=== --> "Archiver-02" ===TRAPS=== --> "Archiver-03" "Classifier-01" --> ===CLASSIFIED=== "Classifier-02" --> ===CLASSIFIED=== "Classifier-03" --> ===CLASSIFIED=== ===CLASSIFIED=== --> "Correlator-01" ===CLASSIFIED=== --> "Correlator-02" ===CLASSIFIED=== --> "Correlator-03" "Correlator-01" --> ===MESSAGES=== ===MESSAGES=== --> "tts notifier-01" ===MESSAGES=== --> "tts notifier-02" ===MESSAGES=== --> "tts notifier-03"

RabbitMQ

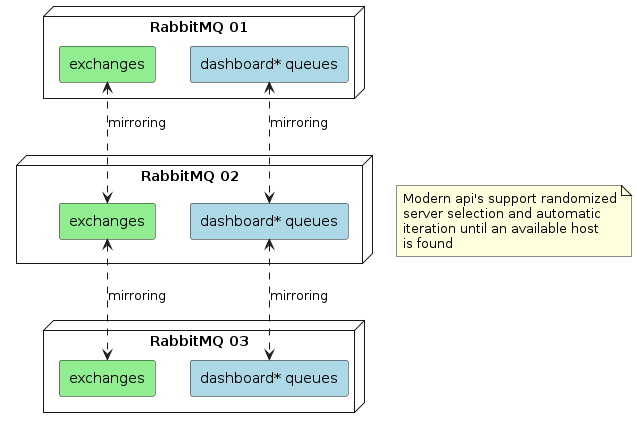

A RabbitMQ cluster is provisioned across all 3 nodes, with mirroring of all queues.

node "RabbitMQ 01" as RMQ1 { rectangle "exchanges" as EX1 #lightgreen rectangle "dashboard* queues" as Q1 #lightblue } node "RabbitMQ 02" as RMQ2 { rectangle "exchanges" as EX2 #lightgreen rectangle "dashboard* queues" as Q2 #lightblue } node "RabbitMQ 03" as RMQ3 { rectangle "exchanges" as EX3 #lightgreen rectangle "dashboard* queues" as Q3 #lightblue } EX1 <..> EX2 : "mirroring" EX2 <..> EX3 : "mirroring" Q1 <..> Q2 : "mirroring" Q2 <..> Q3 : "mirroring" note as N1 Modern api's support randomized server selection and automatic iteration until an available host is found end note 'center RMQ2 -[hidden]right--> N1

Galera Cluster

Alarms are stored in a MariaDB Galera cluster. This is the interface between the backend processing provided by this project and the GUI.

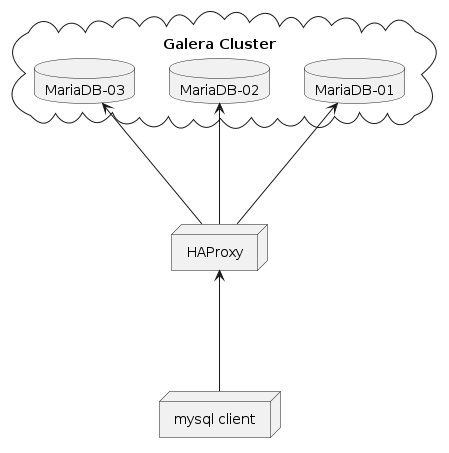

The Galera cluster is provisioned something like this:

cloud Galera as "Galera Cluster" { database MDB1 as "MariaDB-01" database MDB2 as "MariaDB-02" database MDB3 as "MariaDB-03" } node HAProxy HAProxy -up--> MDB1 HAProxy -up--> MDB2 HAProxy -up--> MDB3 node client as "mysql client" client -up--> HAProxy

Inventory Provider and Redis

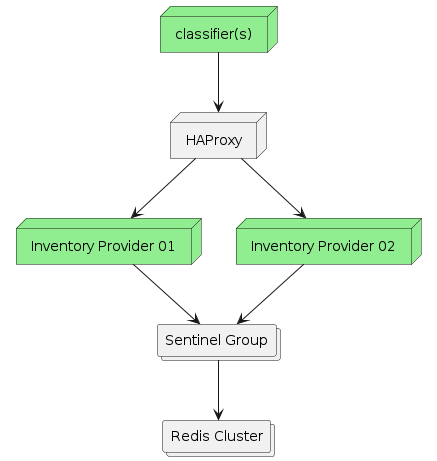

The dashboard servers are provisioned with a Redis cluster, which is the backend of the Inventory Provider rather than being accessed directly by dashboard components.

collections Redis as "Redis Cluster" collections Sentinel as "Sentinel Group" node "Inventory Provider 01" as IV1 #lightgreen node "Inventory Provider 02" as IV2 #lightgreen node HAProxy node classifier as "classifier(s)" #lightgreen HAProxy --> IV1 HAProxy --> IV2 classifier --> HAProxy IV1 --> Sentinel IV2 --> Sentinel Sentinel --> Redis
